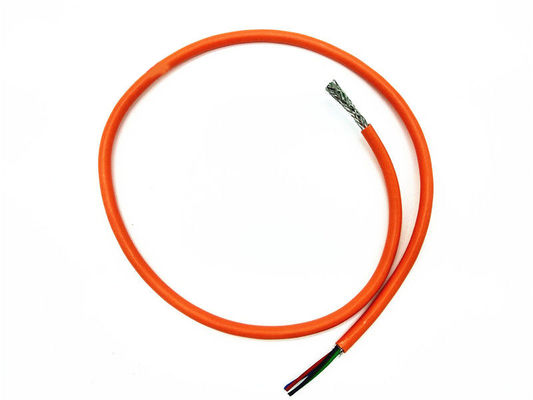

TPE Insulated AC & DC 450V 750V EV Charging Power Cable
Certification
General Administration of Quality Supervision, Inspection and Quarantine
| Certificate No. |
Product Types |
| CQC16011142377 |
EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V |
Structure Diagram
Reference standard: GB/T 33594-2017
Product Specifications
AC Types: EV-(R)S90U, EV-(R)S90S90PU-450/750V 1.0-70(2-5Cores)+0.5-0.75(P/P2)(1-10Cores)
Construction Details
- Rated temperature: -40°C to +90°C
- Rated voltage: AC 450/750V
- Conductor: Stranded bare or tinned copper
- Insulation material: TPE
- Sheath material: TPU
- Flexible construction with resistance to cold, oil (11 types), ozone, abrasion, UV, external pressure and thermal stress
- Passes IEC60332-1 flammability test
- Minimum bending radius: 5xOD
- Easy installation
Applications: Suitable for all types of electric vehicles, charging piles, power stations, and charging stations.
Structural Parameters
| Category |
Wire Specifications |
Reference Current (A) |
Diameter Unshielded (mm) |
| TPE | PU |
3×2.5+2×0.75 |
18 |
12.7 | 11.1 |
| 3×4+2×0.75 |
25 |
14.4 | 12.8 |
| 3×6+2×0.75 |
34 |
16.3 | 14.5 |
| 5×2.5+2×0.75 |
18 |
15.3 | 13.7 |
| 5×4+2×0.75 |
25 |
17.8 | 16.0 |
| 5×6+2×0.75 |
34 |
19.8 | 17.8 |
| 5×10+2×0.75 |
50 |
22.9 | 20.7 |
| 5×16+2×0.75 |
67 |
27.5 | 25.1 |
Notes:
- Detailed dimensions are subject to product specifications
- Other specifications can be custom designed according to customer requirements
- Standard sheath colors are black or orange, with custom colors available
Company Profile
Founded in 2004 with $9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters.
In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
Certifications: ISO9001, ISO14001, IATF16949, ISO13485
Product certifications: CCC, UL, CUL, CE, CSA, ETL
Management principles: HONESTY, INNOVATION, ENVIRONMENTAL PROTECTION
Certificates
Production Process
Shipping
Frequently Asked Questions
Q: What products do you supply?
A: We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certifications do you have?
A: Our products have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certifications.
Q: Can we get samples before ordering?
A: Yes, we can arrange samples for evaluation.
Q: What is your production lead time?
A: Standard lead time is 2-3 weeks, extending to 5-6 weeks during peak seasons.
Q: How do you ensure product quality?
A: We conduct pre-production sampling and final inspection before shipment.
