UL2464 PVC Braid Shielded Power Cable 24-28AWG 300V Industrial Wire

Großes Bild : UL2464 PVC Braid Shielded Power Cable 24-28AWG 300V Industrial Wire

Produktdetails:

Zertifizierung:	ISO9001, CE, CCC, RoHS

Zahlung und Versand AGB:

Min Bestellmenge:	3.000
Preis:	0.5

Kontakt

Ausführliche Produkt-Beschreibung

Modellnummer:	Ul	Materialform:	Runder Draht
Qty/Rolle:	305m, 610m oder als Antrag	Spezifikation:	24-28AWG
Produktionskapazität:	20 km/Tag	Nenntemperatur:	60 °C
Nennspannung:	300 V	Leitergröße:	36-16AWG
Maximale Kerngröße:	20AWG	Schildtyp:	Geflecht oder Al-Mylar verpackt
Mantelmaterial:	PU (Halogenfrei verfügbar)	Isolationsmaterial:	Pp
Leitertyp:	Auskubelte oder bloßes Kupfer	Flammenprüfung:	UL VW-1 und CSA FT1
Maximal cond. Widerstand:	223 Ω/km (28AWG)
Hervorheben:	UL2464 PVC shielded power cable , 24-28AWG industrial wire , 300V braided shielded cable

UL2464 PVC Insulated Braid Shielded Electrical Industrial Electric Power Wire Cable

Product Specifications

Attribute	Value
Model NO.	UL
Material Shape	Round Wire
Color	Optional
Qty/Roll	305m,610m or as Request
Lead Time	2-8W
Shipping Mode	Sea, Air, Rail, Truck
Transport Package	Rolled in Reels, Packed in Pallets
Specification	24-28AWG
Trademark	Hwatek
Origin	China
HS Code	8544492100
Production Capacity	20km/Day

Product Description

Products are widely used in industrial control systems, household appliances, office systems, and consumer electronics.

Key Features

Application: Internal wiring or external interconnection of electronic equipment
Application standard: UL758 & UL1581 & CSA C22.2 No.210
Excellent insulation performance with stable chemical properties
Passes UL VW-1 and CSA FT1 vertical flame test
Heat resistant, anti-acid, and environmentally friendly

Construction Details

Tinned or bare copper, stranded or single conductor (2-50 conductors) 36-16AWG
PP insulation
Max core wire size: 20AWG, available in flat or round
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
PU jacket (Halogen free material available) cable is either straight or spiral

Technical Parameters

Rated temperature: 60ºC
Rated Voltage: 300V

Product Specifications Table

Product Number	Conductor	Insulation	Shield	Jacket	Max. Cond. Resistance (200C) Ω/km
HT21007**101	3C 28 AWG 7/0.127 0.38mm	0.26mm 0.80mm	0.025mm 0.10mm 0.80mm	3.80mm	223
HT21007**102	3C 26 AWG 7/0.16 0.48mm	0.26mm 0.90mm	0.025mm 0.10mm 0.80mm	4.04mm	140
HT21007**103	3C 24 AWG 11/0.16 0.60mm	0.26mm 1.12mm	0.025mm 0.10mm 0.80mm	4.51mm	87.6
HT21007**104	3C 22 AWG 17/0.16 0.76mm	0.26mm 1.30mm	0.025mm 0.10mm 0.80mm	4.90mm	55.4
HT21007**105	6C 28 AWG 7/0.127 0.38mm	0.26mm 0.80mm	0.025mm 0.12mm 0.80mm	4.70mm	223
HT21007**106	6C 26 AWG 7/0.16 0.48mm	0.26mm 0.90mm	0.025mm 0.12mm 1.00mm	5.30mm	140
HT21007**107	6C 24 AWG 11/0.16 0.60mm	0.26mm 1.12mm	0.025mm 0.12mm 1.00mm	6.00mm	87.6

Remark: Optional core wire number 2C-50C, and shielding way

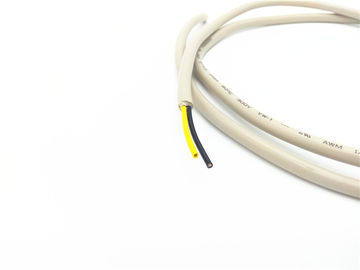

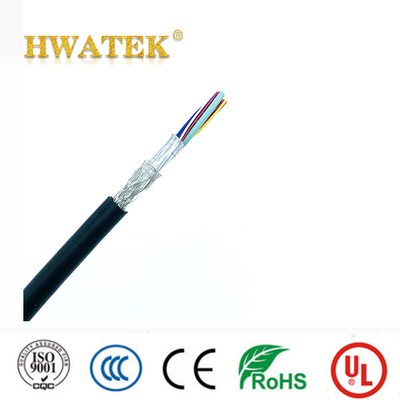

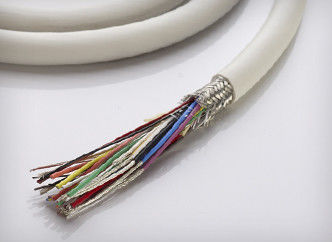

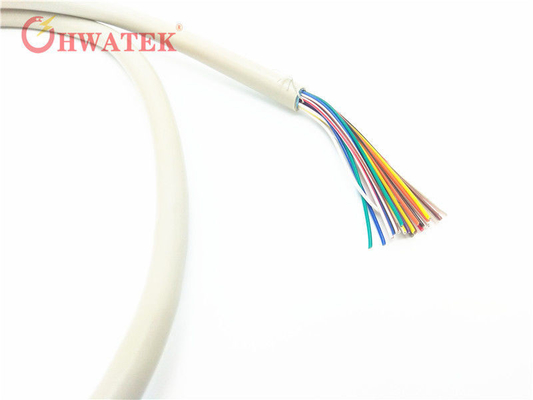

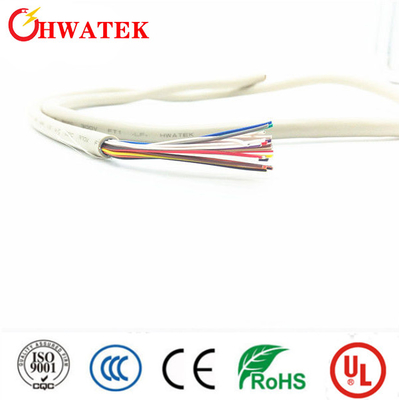

Product Images
