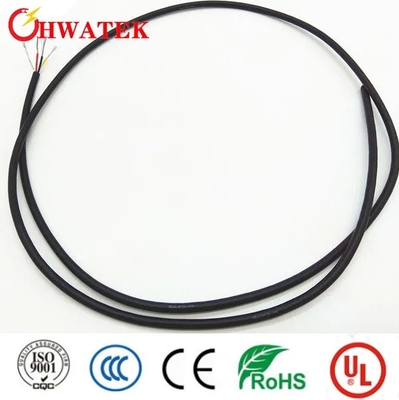

UL2464 Flame Retardant Power Multicore Cables
Product Attributes
| Attribute |
Value |
| Sheath Material |
PVC |
| Insulation Material |
PVC, Sr-PVC, PE or PP |
| Material Shape |
Round Wire |
| Range of Application |
Industrial Control |
| Brand |
Hwatek |
| Color |
Optional |
| Qty/Roll |
305m, 610m or as Request |
| Transport Package |
Rolled in Reels, Packed in Pallets |
| Trademark |
Hwatek |
| Origin |
China |
| HS Code |
8544492100 |
Product Description
Products are used in industrial machinery, instruments, industrial control systems, electronic and electrical equipment.
Application
For wiring of sensor.
Application Standard
UL758 & UL1581 & CSA C22.2 No.210
Product Characteristics
- Excellent insulation performance, stable chemical properties, anti-acid and environmental protection
- Effectively resist electromagnetic interference by Al-Mylar, braiding shield
- Heat resistance, pass UL VW-1 and CSA FT1 vertical flame test
Construction
- Tinned or bare, stranded or single copper conductor, 26-14AWG
- PVC, SR-PVC, PE or PP insulation
- Two or more single-core wire are twisted and cabling
- Spiral or braiding shield with tinned or bare copper or Al-mylar wrapped shield
- PVC jacket
Technical Parameters
Rated temperature: 80ºC
Rated Voltage: 300V
| Product Number |
Conductor |
Insulation |
Jacket |
Max. Cond. Resistance (200C) Ω/km |
| HT2464M**0001 |
3 cores, 0.25mm², 30/0.1, 0.60mm |
0.80mm, 2.20mm |
1.0mm, 6.7mm |
74.5 |
| HT2464M**0002 |
4 cores, 0.25mm², 30/0.1, 0.60mm |
0.80mm, 2.20mm |
1.0mm, 7.3mm |
74.5 |
| HT2464M**0003 |
5 cores, 0.25mm², 30/0.1, 0.60mm |
0.80mm, 2.20mm |
1.0mm, 7.9mm |
74.5 |
| HT2464M**0004 |
3 cores, 0.34mm², 42/0.1, 0.75mm |
0.80mm, 2.35mm |
1.0mm, 7.1mm |
59.4 |
| HT2464M**0005 |
4 cores, 0.34mm², 42/0.1, 0.75mm |
0.80mm, 2.35mm |
1.0mm, 7.6mm |
59.4 |
| HT2464M**0006 |
5 cores, 0.34mm², 42/0.1, 0.75mm |
0.80mm, 2.35mm |
1.0mm, 8.3mm |
59.4 |
Remark: Optional core wire number 2C-50C, and shielding way
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
FAQ
Q: What can you supply?
A: We do produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
