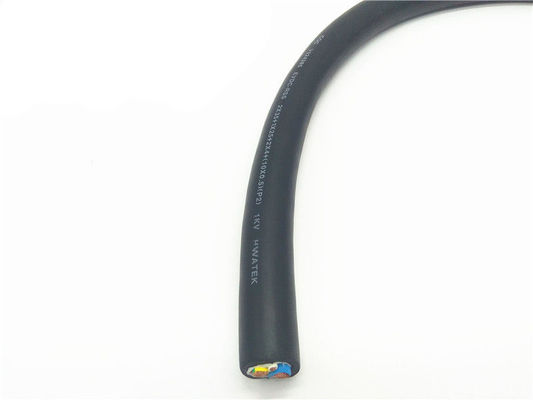

DC1500V Electric Vehicle Charging Cable PVC Insulated
Product Description
EVC H05BZ5-F EVC H07BZ5-F 300/500V TüV certified electric vehicle charging cable
Certification
Certification Body: Technischer Überwachungs-Verein
| Certificate No. |
Product Types |
| R 50471285 |
EVC H05BZ5-F 5`EVC H07BZ5-F |
| R 50488767 |
62893 IEC 126 |
Reference Standards
EN50620:2017
IEC 62893-4-1:2020
Product Category
- EVC H05BZ5-F(1.5-2.5,3Cores)+(0.5-1.0,0-12Cores)
- EVC H07BZ5-F3*1.5+(0.5-1.0,0-12Cores)
- EVC H07BZ5-F(2.5-35,3-5Cores)+(0.5-1.0,0-12Cores)
- 62893 IEC 126 2*(4-150)+1*(4-95)+2*(2.5-6)+(0.5-1.0, 0-12Cores)

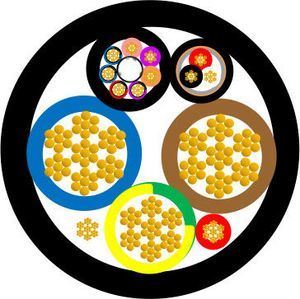

Construction
Rated temperature EN50620: -35 ~ +90°C
Rated temperature IEC 62893: -25 ~ +90°C
EN50620 voltage: AC300/500V,450/750V
IEC 62893 voltage: DC1500V
Conductor: Stranded bare or tinned copper
Insulation material: EV1-2
Sheath material: EVM-1
The material is soft, resistant to low temperature, oil, thermal shock, external load pressure and thermal stress, flame retardant up to VW-1, minimum bending radius up to 5*OD, easy to install. Comply with RoHS and REACH environmental protection requirements. Product is applicable for all kinds of electric vehicles, charging piles, power station, charging station.
Structural Parameters
| Category |
Wire specifications |
Reference current (A) |
Diameter (mm) |
| EVC H05BZ5-F |
3×1.5+2×0.75 |
14 |
9.4 |
| EVC H05BZ5-F |
3×2.5+2×0.75 |
18 |
10.3 |
| EVC H07BZ5-F |
3×1.5+2×0.75 |
14 |
9.8 |
| EVC H07BZ5-F |
3×2.5+2×0.75 |
18 |
10.7 |
| EVC H07BZ5-F |
3×4+2×0.75 |
25 |
11.8 |
| EVC H07BZ5-F |
3×6+2×0.75 |
34 |
13.0 |
| EVC H07BZ5-F |
3×10+2×0.75 |
50 |
15.5 |
| EVC H07BZ5-F |
3×16+2×0.75 |
67 |
19.0 |
| EVC H07BZ5-F |
5×2.5+2×0.75 |
18 |
13.4 |
| EVC H07BZ5-F |
5×4+2×0.75 |
25 |
14.6 |
| EVC H07BZ5-F |
5×6+2×0.75 |
34 |
16.5 |
| EVC H07BZ5-F |
5×10+2×0.75 |
50 |
18.9 |
| EVC H07BZ5-F |
5×16+2×0.75 |
67 |
23.3 |
| EVC H07BZ5-F |
5×25+2×0.75 |
94 |
28.0 |
| EVC H07BZ5-F |
5×35+2×0.75 |
117 |
32.3 |
1. The detailed dimensions are subject to the product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.
