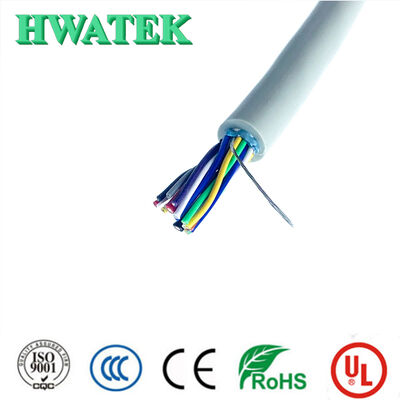

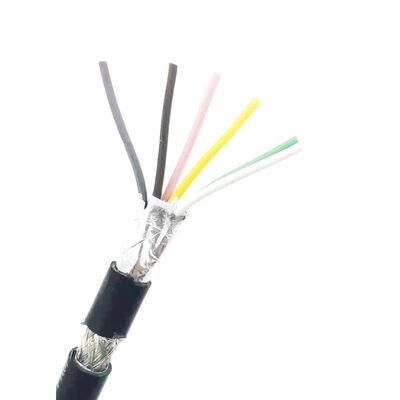

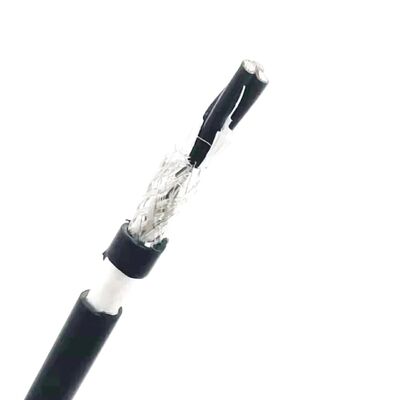

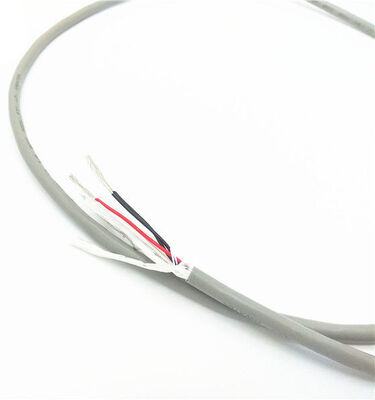

PVC Insulated SJT UV Resistance Elevator Power Cable
Product Overview
SJT, SJTW, 300V, 105ºC, UV resistance, moisture resistance, VW-1, PVC insulated elevator machine room wiring power cable.
Product Introduction
The wiring in the elevator machine room with a rated voltage of 300V power cable is composed of copper conductor, insulation, filling, tape, shielding and outer sheath. The cable features high flexibility, high temperature resistance, flame retardant properties, and meets requirements for outdoor use and special places: moisture resistance, UV resistance, and oil resistance. All materials comply with the latest environmental protection standards of RoHS & Reach.
Key Characteristics
- High flexibility for easy installation
- High temperature resistance up to 105ºC
- Flame retardant VW-1 rated
- UV resistance for outdoor applications
- Moisture resistance
- Oil resistance
- RoHS & Reach compliant materials
Application Field
Primarily used for fixed installation of transmission cables in elevator machine rooms.
Typical applications: distribution box → control cabinet power line, control cabinet → motor power line
Cable Structure Diagram
1 - conductor, 2 - insulation, 3 - filling, 4 - strap, 5 - shield (Optional), 6 - outer sheath
Printing: E366579 TYPE STOW ***AWG 105ºC 600V VW-1 HWATEK
Basic Construction
- Conductor: Solid or Stranded
- Insulation: Special mixed PVC
- Shield or Braid: Optional
- Jacket: Special mixed PVC
Compliance Standards (ST/STW)
- International: UL62, UL1581
- RoHS, REACH Compliant
Technical Specifications (ST/STW)
- Rated voltage: 600V
- Rated temperature: -40ºC to 105ºC
- Flame rating: VW-1, FT1, FT2
- Oil resistance: 60ºC or 80ºC Oil
- Voltage withstand test: AC 2.0kV/1min
Product Specifications
| Number of cores*Specifications |
Conductor structure |
Conductor outer diameter (mm) |
Average insulation thickness (mm) |
Insulation outer diameter (mm) |
Average thickness of sheath (mm) |
Finished outer diameter (mm) |
Cable net weight (kg/km) |
Maximum conductor DC resistance (20ºC) Ω/km |
| 3C*12AWG(4mm²) | 65/0.254 | 2.36 | 0.76 | 4.1±0.20 | 1.14 | 11.8±0.40 | 199.3 | 5.64 |
| 3C*10AWG(6mm²) | 7/15/0.254 | 3.20 | 1.14 | 5.7±0.20 | 1.52 | 16.1±0.60 | 356.9 | 3.546 |
| 4C*12AWG(4mm²) | 65/0.254 | 2.36 | 0.76 | 4.1±0.20 | 1.14 | 12.9±0.50 | 248.2 | 5.64 |
| 4C*10AWG(6mm²) | 7/15/0.254 | 3.20 | 1.14 | 5.7±0.20 | 1.52 | 17.6±0.60 | 446.1 | 3.546 |
| 5C*12AWG(4mm²) | 65/0.254 | 2.36 | 0.76 | 4.1±0.20 | 1.14 | 14.1±0.50 | 301.5 | 5.64 |
| 5C*10AWG(6mm²) | 7/15/0.254 | 3.20 | 1.14 | 5.7±0.20 | 1.52 | 19.6±1.0 | 540.3 | 3.546 |
| 3C*12AWG(4mm²)+16AWG(1.5mm²) | 65/0.254 | 2.36 | 0.76 | 4.1±0.20 | 1.14 | 12.3±0.40 | 222.1 | 5.64 |
| 3C*10AWG(6mm²)+12AWG(4mm²) | 7/15/0.254 | 3.20 | 1.14 | 5.7±0.20 | 1.52 | 16.6±0.60 | 400.4 | 3.546 |
| 4C*12AWG(4mm²)+16AWG(1.5mm²) | 65/0.254 | 2.36 | 0.76 | 4.1±0.20 | 1.14 | 13.6±0.50 | 274.9 | 5.64 |
| 4C*10AWG(6mm²)+12AWG(4mm²) | 7/15/0.254 | 3.20 | 1.14 | 5.7±0.20 | 1.52 | 18.3±0.60 | 495.0 | 3.546 |
| 3C*12AWG(4mm²)+2C*16AWG(1.5mm²) | 65/0.254 | 2.36 | 0.76 | 4.1±0.20 | 1.14 | 13.1±0.50 | 248.6 | 5.64 |
| 3C*10AWG(6mm²)+2C*12AWG(4mm²) | 7/15/0.254 | 3.20 | 1.14 | 5.7±0.20 | 1.52 | 17.5±0.60 | 452.9 | 3.546 |
Note: Detailed dimensions and technical parameters are subject to our product specifications. The above products are non-shielded standard models, and can also be customized according to customer requirements or actual usage.
